The Architecture Portfolio Guide

Your portfolio is how you get hired or get into school. It shows who you are as a designer: how you think, what you care about, and what you can do. It is not a binder of finished projects or a collection of renderings. It is a communication tool that connects your ideas to the people evaluating them. Admissions committees and hiring managers both use it to gauge where you have been and where you are headed.

A Portfolio Is Not a Personal Journal

There is an important difference between a personal design journal and a portfolio. A journal is for you. It captures experiments, rough ideas, and reflections. A portfolio is for an audience. It is edited, structured, and intentional. It answers the question: what do these projects, taken together, say about how I approach design?

The Difference Between Weak and Strong Portfolios

What a Portfolio Demonstrates

• Design Thinking: How you identify problems, ask the right questions, and develop a response
• Technical Ability: Whether you can take an idea from concept to a detailed, buildable design
• Visual Communication: How well you organize information on the page: layout, hierarchy, sequencing
• Research Depth: The quality of your analysis, site research, and reasoning behind design moves
• Growth: How your work has developed from early concepts through revision to a resolved design

Your portfolio does the talking before you walk into the room, and it stays behind after you leave. A strong one can get you an interview that your resume alone would not.

Who is going to look at your portfolio? That question should shape everything: what you include, how you organize it, and what you emphasize. Generally, portfolios are reviewed by two kinds of audiences: academic admissions committees and professional firms. Each group looks for different things.

A portfolio that works for a grad school application might fall flat at a corporate firm. One tailored to a small sustainable design studio might not land at a large infrastructure practice. Know your audience before you start building.

Target Audiences and Evaluation Criteria

Audience-Specific Portfolio Strategies

For Academic Audiences: Emphasize process: sketches, diagrams, analytical drawings. Show how your thinking developed. Include dead ends or alternative approaches you explored. Admissions reviewers want to see how you learn and grow, not just your best final images.

For Professional Firms: Lead with resolved, professional work. Show your ability to produce publication-quality graphics and technically sophisticated drawings. Highlight projects at scales and typologies that match the firm's portfolio. Demonstrate that you understand professional constraints: budgets, timelines, regulatory requirements.

The Tailored Portfolio Approach

While it is ideal to maintain a core set of strong, broadly relevant projects, consider developing tailored versions of your portfolio for different contexts. If you are applying to both academic programs and professional firms, your academic portfolio might emphasize research methodology and conceptual exploration, while your professional portfolio highlights technical proficiency and project resolution. This is not deception; it is curation.

Curation means cutting. Quality over quantity. Reviewers look at hundreds of portfolios. One great spread will stick with them more than twenty average pages. Almost without exception, shorter portfolios are stronger portfolios.

Your first instinct as a student is to show everything. Resist this. Your strongest portfolio will leave out 80% of what you have made. The 20% that remains should be so well-chosen and well-ordered that every page earns its place.

Quantitative Guidelines for Portfolio Scope

• For students: 15–25 high-impact images/pages for a full portfolio. Each project should occupy 2–4 pages.
• For professional sample portfolios: 2–5 A3/A4 pages of absolute best work. This is your leave-behind or website gallery.
• For internship applications: 8–12 pages showing range across typologies and scales.
• For graduate school: 20–30 pages with emphasis on process and research methodology alongside resolved design work.

The Selection Matrix: Strategic Project Selection

Create a matrix with your projects on one axis and key skills on the other: sustainability, computational design, community impact, technical resolution, conceptual innovation, diverse scales, diverse typologies. Each selected project should illuminate multiple cells in this matrix. No project should address only one skill or demonstrate only one scale of work.

Documentation and Process Work

For each project, document the design process at multiple stages:

• Initial Ideation: Raw concepts, early-stage sketches, "napkin" drawings, mood boards
• Research and Analysis: Site constraints, cultural contexts, environmental data, material studies, precedent analysis
• Prototyping: Physical and digital models showing evolution of form, sectional studies, volumetric explorations
• Technical Resolution: Detailed plans, sections, details, construction drawings, material specifications

Narrative in a portfolio is a design problem, not a writing task. It operates through the organization of projects, the sequencing of visuals, and the relationships between pages. A portfolio that simply displays work is not the same as one that actively guides the viewer's interpretation. The difference is narrative structure: how information is ordered, emphasized, and withheld.

We often describe portfolios as "working" or "not working" without being able to explain why. What feels intuitive is actually the result of deliberate narrative construction. The goal is to recognize these structural decisions and make them intentionally.

What Makes a Narrative Strong

Strong narratives are not accidental. They are the result of intentional design decisions.

1. A Clear Central Question or Idea (Focus)
A project clearly asks one guiding question, such as how housing can adapt to seasonal migration, rather than attempting to address multiple unrelated issues. The portfolio communicates a unifying design thesis that threads through individual projects.

2. An Intentional Sequence of Information (Structure)
The project begins with site conditions and the design problem, moves through concept and strategy, and only then presents plans, sections, and details. Information builds logically from context to resolution.

3. Selective Inclusion and Omission (Curation)
Only drawings that actively support the project's core idea are included, while secondary studies or weaker iterations are intentionally left out. Not every sketch, model, or iteration needs to appear. The choices you make reveal curatorial judgment.

4. A Consistent Point of View (Lens)
The project consistently frames itself as an exploration of spatial experience, material systems, or social impact, rather than shifting between unrelated agendas across pages. Language, tone, and visual approach remain coherent.

5. A Sense of Resolution or Clarity (Closure)
The project concludes with drawings or diagrams that clearly demonstrate what was resolved, learned, or clarified through the design process, even if the proposal remains speculative. Narrative does not require a perfect solution, but it does require a clear ending.

How Narrative Gets Built

To intentionally design narrative in a portfolio, work in this order:

1. Start with a clear project statement. Define the central question, intent, and scope. Writing clarifies intent.
2. Translate intent into a narrative outline. Decide what comes first, what follows, and how the story unfolds. Structure gives images meaning.
3. Organize images to support that outline. Select and sequence visuals so each one reinforces the narrative.

The project statement drives the narrative outline, and the narrative outline drives the image sequence. If you start by arranging images without a clear statement, you are decorating rather than communicating.

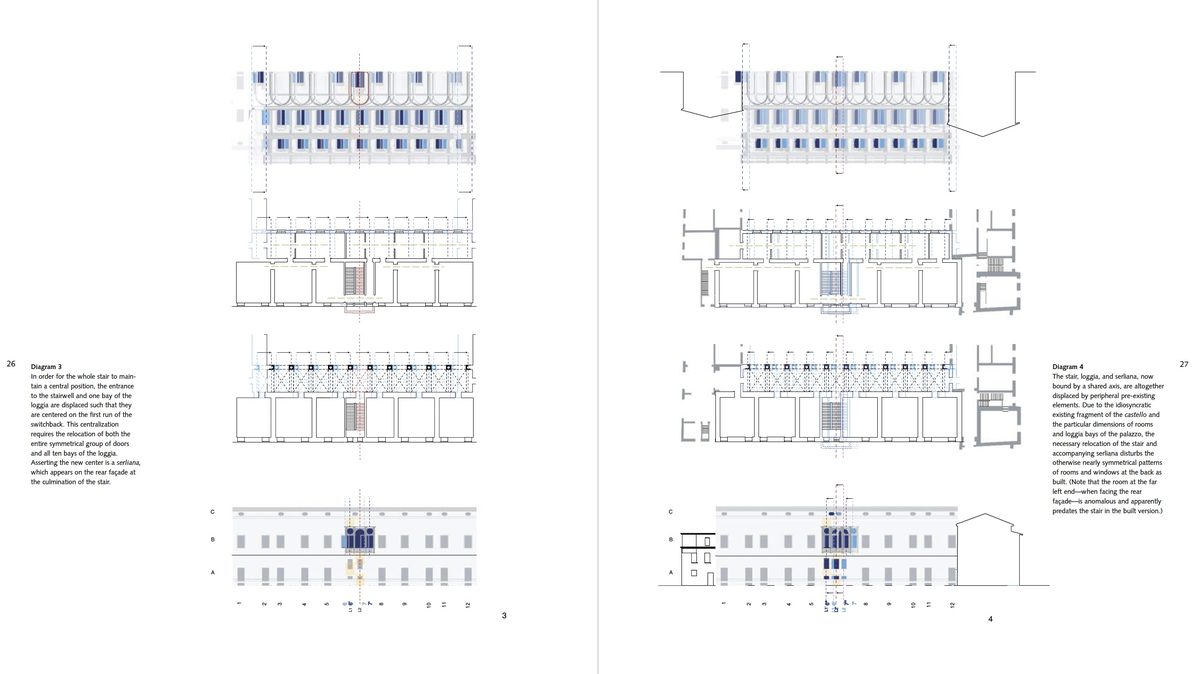

Analytical narrative sequence: progressive diagrams build spatial understanding across a spread

Common Narrative Failures

The Process Dump: Too many sketches and iterations without editorial judgment. The portfolio becomes an indiscriminate record of everything made, rather than a curated narrative showing key decision points and design evolution.

The Beautiful Mute: Visually stunning renderings and graphics, but the portfolio fails to communicate design logic. You cannot understand why these formal moves were made or what problems they solve.

The Buried Lede: Your strongest work is hidden deep in the portfolio behind weaker projects. Your best project should appear early, establishing credibility and momentum.

The Academic Hedge: Overly theoretical language that obscures rather than clarifies the design work. The portfolio feels like an essay about architecture rather than a demonstration of architectural thinking through projects.

From Project Narrative to Portfolio Sequence

The principles above apply within individual projects. But the same logic governs the portfolio as a whole: the order of your projects, the transitions between them, and the cumulative story they tell. How to sequence projects across the full portfolio is covered in Section 6: Storyboarding & Visual Sequencing.

The project statement is where narrative begins. Before you arrange images or design layouts, you need to define what a project is about: its central question, its intent, and its scope. Writing clarifies intent. Without a clear statement, a project becomes a collection of images without coherence, and your layout decisions become arbitrary rather than purposeful.

A project statement is not a description of what you built. It is a declaration of what you investigated and why it matters. It defines the central question your design asks and the specific approach you took to address it.

The Project Question: Weak vs. Strong

From Statement to Narrative Outline

Once you have a clear project statement, translate it into a narrative outline before touching any layout. The outline answers three questions: What information comes first? What follows? How does the story unfold? This is the bridge between writing and design.

A narrative outline for a single project might look like:

1. Context and Problem Framing: Site conditions, the spatial or social condition that motivated the project, the constraints you worked within
2. Conceptual Position: Your specific approach or thesis. What is the design idea?
3. Design Development: How the concept evolved through iteration, testing, and refinement. Key design moves and the evidence behind them.
4. Resolution: What was achieved, what evidence demonstrates the outcome, how the final design addresses the problem you framed

Every image in the project should map to one of these stages. If a drawing does not serve any stage of the narrative, it probably does not belong.

The Two-Paragraph Project Description

Paragraph 1 — Context and Intent: Establish the design problem, site conditions, and your conceptual approach in 4–6 sentences. Answer: Why does this project matter? What condition triggered the design response? What is your core design thesis?

Paragraph 2 — Development and Outcome: Describe how the concept evolved through design and what was resolved. Answer: What evidence demonstrates that your approach worked? What were key design moves? How does the final design address the problem you framed?

Clarity and Specificity

Use concrete, precise language. Avoid abstractions. Instead of "The design promotes community interaction," write "The ground-floor plaza incorporates tiered seating and weather protection, enabling informal gathering even during light rain, which architectural surveys identify as the primary barrier to plaza use in this climate."

The reader should be able to understand your project's core idea in 30 seconds of reading your statement. Everything in the visual sequence should reinforce and elaborate that central idea.

Tone and Voice

Your project statements collectively establish your architectural voice. They should sound like the work of a thoughtful designer who understands design as problem-solving, not as aesthetic exercise. Write in clear, active voice. Use present tense for the design ("The plaza incorporates") and past tense for the process ("I researched," "I analyzed").

Storyboarding is the process of sequencing images and text to communicate a design narrative. In film, storyboarding sequences shots to create emotional and narrative momentum. In portfolio design, storyboarding sequences images and diagrams to guide the viewer through your design logic.

Four Types of Portfolio Drawings

Before sequencing, categorize your visual content by what it communicates. Not all images serve the same function, and knowing what role each drawing plays helps you build a sequence that actually tells a story.

1. Context drawings: Site photographs, mapping studies, environmental data, precedent analysis. These establish the problem and frame the design challenge.
2. Process drawings: Diagrams, early models, iterative sketches, analytical drawings. These show how you think about the problem and how the design idea evolved.
3. Technical drawings: Plans, sections, details, structural logic, material specifications. These demonstrate technical competency and show that the design is buildable.
4. Experience drawings: Renders, spatial perspectives, atmospheric visualizations, user scenarios. These show what it feels like to inhabit or experience the final design.

Every drawing in your portfolio belongs to one of these four categories. If you cannot identify which category a drawing serves, it may not belong in the sequence.

Project-Level Sequence Structures

Within a single project, three sequence structures are common:

• Linear Narrative: Site → concept → development → resolution. Works well for process-driven projects where the evolution of the design is central to the story.
• Comparative Narrative: Before/after, existing/proposed, or multiple design alternatives. Effective for renovation projects or when showing the impact of your design moves.
• Thematic Narrative: Organized around a design principle (materiality, phenomenology, sustainability) rather than chronology. Shows how multiple design decisions reinforce a central concept.

Portfolio-Level Sequencing

The same logic applies to how you order projects across the full portfolio. Three effective approaches:

• Thematic Arc: Projects organized around a design principle or methodology (e.g., adaptive reuse, community engagement, material innovation) rather than chronology
• Scale Progression: Moving from detail to larger context, or vice versa, to show versatility across scales
• Evolution of Thinking: Projects sequenced to show intellectual development and refinement of a central design thesis over time

The Two-Track Reading System

Design your project spreads to function at two simultaneous speeds:

• Track 1 — The Skim (30–90 seconds): Large images, clear hierarchy, minimal text. A reviewer scanning quickly should understand your project's core idea from layout and images alone.
• Track 2 — The Study (5–15 minutes): Captions, process documentation, analytical detail. For the viewer who engages more deeply, provide text and diagrams that explain design logic and technical decisions.

Captions and the Relay Method

Text and image should complete each other rather than duplicate. A caption that merely labels what is already visible adds nothing. A caption should provide information the image cannot convey on its own: the reason for a design decision, the constraint that shaped the form, or the outcome that resulted.

Typography in your portfolio is not decoration. It is a structural system that organizes information, establishes hierarchy, and communicates your design values. Font choice, size relationships, spacing, and alignment collectively constitute a visual language that either reinforces or undermines your credibility as a designer.

Font Selection and Psychological Impact

Typographic Hierarchy Principles

• Limit to 2–3 complementary fonts: One for titles, one for body text, optionally one for captions or special emphasis
• Establish clear size relationships: Large bold titles (often 24–36 pt), medium subheadings (18–24 pt), smaller body text (10–12 pt)
• Use weight and style strategically: Bold for emphasis, italics for quotes or defined terms, regular weight for body text
• Align text consistently: Left-aligned body text is most readable; centered text for titles; justified text rarely improves legibility

Typefaces for the Architecture Portfolio

Selecting typefaces that communicate precision, materiality, and architectural intent. The 16 typefaces below are organized into four categories, from foundational modernist standards to contemporary humanist voices, editorial serifs, and technical display faces. Each commercial font is paired with a free open-source alternative from Google Fonts.

Selection Principles

Choosing the right typeface is a design decision that communicates the same values of precision and intentionality that define the architectural work itself. Start with the tone of your project, then narrow by practical constraints.

01 — The Modernist Workhorses

Neutral and precise, rooted in the Swiss International Style and German engineering traditions, these typefaces prioritize clarity and neutrality, ensuring that complex architectural drawings and diagrams remain the focal point of the page.

02 — Humanist & Contemporary

Approachable and warm. As contemporary practice moves beyond purely rationalist aesthetics, humanist typefaces introduce a calibrated warmth to personal narratives, design philosophy statements, and digital portfolios.

03 — Editorial & Stylistic

For specific architectural styles. Typography should reinforce the design thesis of the work it accompanies. These typefaces let you align typographic expression with architectural intent, from Brutalist materiality to classical refinement.

04 — Functional & Display

For drafting and presentations. Engineered for legibility in technical production environments such as CAD and BIM, and for high-impact visual communication at presentation and exhibition scale.

Recommended Pairings & Size Standards

Pairing typefaces is about creating contrast without conflict. A geometric sans-serif heading paired with a humanist serif body creates visual tension that draws readers through the page. Below are four tested combinations and the size relationships that keep them in proportion.

Font Sources & Licensing

Several typefaces in this guide are commercially licensed. However, three are available at no additional cost through Adobe Creative Cloud, which most architecture programs provide to students. Every commercial font is also paired with a high-quality open-source alternative for those without commercial access.

A grid is a system of invisible lines that organizes content on a page. It determines where text sits, where images align, and how white space is distributed. Without a grid, a portfolio is a collection of pages. With one, it becomes a coherent document. The grid is the invisible architecture of your portfolio. It should feel inevitable, not restrictive.

Why the Grid Matters

Grids exist to solve a fundamental problem: how do you arrange complex information (text, images, diagrams, captions) so that it feels intentional rather than accidental? A strong grid provides three things: consistency across pages so reviewers can focus on content rather than navigation, hierarchy so the eye knows where to go first, and rhythm so the portfolio feels composed rather than assembled.

Grid Anatomy

Before building a grid, you need to understand its components. Every grid is made up of columns, gutters, modules, margins, and baseline increments. These parts work together the same way structural elements work together in a building. Each one has a role, and removing any one of them compromises the whole system.

A Brief History

The grid is not a modern invention. The Greek and Roman Hippodamian plan organized cities into orthogonal blocks. The Japanese Ken module governed timber construction proportions for centuries. The typographic grid emerged in post-war Switzerland through Josef Muller-Brockmann and the Swiss International Style, a response to chaos, an attempt to bring order, clarity, and objectivity to visual communication. The same impulse that drives you to align columns in a floor plan should drive how you organize a portfolio spread.

The Design Analogy: Structure = Layout

Think of your portfolio page the way you think about a building. A building has a structural column grid: vertical elements that carry loads and define spatial rhythm. A page has a column grid: vertical divisions that carry content and define visual rhythm. Columns determine where walls and openings go; on the page, columns determine where images and text go. Beams span between columns to create floor plates; baselines span across the page to create consistent text alignment. The margin is your setback: the distance between the edge and the usable space.

The Ideal System: Baseline + Modular

A professional portfolio grid combines two systems working together. The baseline grid controls horizontal rhythm. It ensures every line of text, every caption, and every image edge aligns to the same invisible horizontal lines. The modular grid controls vertical structure. It divides the page into columns and modules that determine content width and placement.

When these two systems overlap, you get a complete framework: a matrix of cells where every element on the page has a precise location. Text snaps to baselines. Images span exact column widths. Captions align with image edges. White space becomes intentional rather than accidental.

The Atomic Unit: Why 12pt

Every grid needs a base unit: the smallest increment from which all other measurements derive. In architecture, this might be a 4-inch module or a 600mm planning grid. In portfolio design, the atomic unit is 12 points.

Why 12? Because 12 is the most divisible small number. It divides evenly by 2, 3, 4, and 6, giving you maximum flexibility for spacing, margins, gutters, and type sizes. Your body text at 9pt sits cleanly on a 12pt baseline. Your heading at 24pt spans exactly 2 baseline increments. Your margins at 48pt equal exactly 4 increments. Everything relates back to 12.

Module Anatomy

A module is the basic building block of your modular grid. One column wide by a set number of baselines tall. Understanding how modules are constructed from baseline increments is essential. Each module contains a content zone (where text and images sit) and a gutter zone (the space between modules). In a 12pt system, a module might be 7 content lines (84pt) plus 1 gutter line (12pt), giving a total module height of 96pt.

Phase 1: Preparing the InDesign Workspace

Before constructing your grid, set up your InDesign workspace correctly. Your workspace should include the Pages panel, Layers panel, and Links panel on the left; the central canvas showing your two-page spread; and the Properties, Align, Swatches, Paragraph, and Paragraph Styles panels on the right.

Go to Preferences > Units & Increments and change both Horizontal and Vertical rulers from inches to points. This is critical — working in points gives you the precision needed for grid construction. Set your Keyboard Increment to 12pt so nudging objects with arrow keys moves them exactly one grid unit.

Phase 2: Constructing the Page

Create a new document with these specifications for a standard portfolio page:

Under Preferences > Grids, set the Baseline Grid start to 0pt, relative to Top of Page, and the increment to 12pt. Then use Layout > Create Guides to add 8 row guides with 12pt gutters. The result is a page with 70 baseline lines and 8 horizontal row divisions. Your complete modular framework.

Six columns is the recommended starting point because 6 divides into flexible arrangements: a full-width image spans all 6 columns, a large image takes 4 with text in the remaining 2, two equal images each take 3, or three equal columns of 2 each. This single column count handles virtually every layout scenario you will encounter.

Phase 3: Applying the Grid

With your grid constructed, every element on the page must respect it. Set all text frames to Align to Baseline Grid in the paragraph settings. This ensures every line of body text, every caption, and every heading locks to the 12pt baseline. Images should snap to column edges — their widths should span exact column multiples, and their top and bottom edges should align to baseline increments.

When placing content, think in modules. A module is one column wide by a set number of baselines tall. An image might occupy a 3-column x 20-baseline module. A text block might fill a 2-column x 15-baseline module. Every element has a precise address on the grid.

Consistency Across Spreads

The true power of a grid reveals itself across multiple pages. When the same 3-column modular grid underlies every spread, whether showing plans, renders with text, or diagrams, the portfolio develops visual rhythm and cohesion. Reviewers can navigate intuitively because the underlying structure is familiar, even as the content changes.

Common Mistake: Baseline Drift

Baseline drift occurs when text gradually falls off the grid, usually because a heading, image, or spacing value introduced a non-12pt increment. Once one element drifts, everything below it misaligns. The result is subtle but noticeable: text across columns no longer lines up horizontally, captions float at slightly different heights, and the page loses its sense of precision.

White Space as Design Strategy

White space is perhaps the most undervalued tool in portfolio design. It provides visual relief, prevents cognitive overload, and directs focus. A crowded page signals a lack of confidence; a balanced layout embracing empty space suggests a designer in control of the narrative. Empty modules in your grid are not wasted space. They are compositional decisions. Learn to see white space as an active element, not a passive one.

Layout and Visual Hierarchy

Use your grid to establish a reading pattern. The F-pattern (viewers scan left-to-right, then down the left side) and Z-pattern (diagonal scanning) are natural eye movements. Position your most important content: the hero image, the project title, the key diagram — along these visual pathways. Secondary content (process images, captions, supplementary drawings) fills the supporting grid positions.

Color in your portfolio should serve narrative function, not decoration. Color can distinguish between project phases, highlight key diagrams, differentiate between typologies, or establish visual coherence across multiple projects. Every color choice should have a reason.

Common Color Strategies

Architectural portfolios tend to work within three broad palette families:

1. Nature-Grounded Palettes: Earthy tones like terracotta, sage green, sand, and warm gray. These feel grounded and pair well with projects emphasizing sustainability, landscape, or material culture.
2. Muted Contemporary Tones: Soft, restrained shades (pale cyan, muted lavender, warm coral) that feel current without being trendy. These work well for digital portfolios and suggest a forward-looking sensibility.
3. Industrial Neutrals: Deep grays, charcoals, and warm blacks providing a neutral backdrop for architectural renders and photographs. Lets the work itself occupy the visual foreground.

Color Application Strategies

Monochromatic Approach: Use a single base color in varying tints and shades for backgrounds, borders, and highlights. Creates visual unity and reduces visual noise.

Complementary Accent System: A neutral primary palette (black, white, gray) with one accent color for emphasis (gold, teal, rust). The accent color draws attention to critical diagrams or key images.

Analogous Harmony: Three adjacent colors on the color wheel (e.g., green, teal, blue) create visual richness without clashing. Works well for projects with multiple phases or typologies.

Accessibility and Contrast

Ensure sufficient contrast between text and background for readability. Avoid color combinations that are difficult for colorblind viewers to distinguish (red-green, blue-yellow). Use online contrast checkers to verify that your typography meets WCAG accessibility standards.

Your portfolio's identity is the sum of its design choices: cover, typography, color palette, and grid working together as a unified system. A strong identity makes your portfolio instantly recognizable and signals that every decision was intentional.

The Cover as First Impression

Your portfolio cover is viewed in the first 10 seconds of engagement. It must immediately communicate your design sensibility and professional identity. Think of the cover as a thesis statement for your visual language. It sets the tone for everything that follows.

7 Cover Typologies

Through analysis of hundreds of architecture and design portfolio covers, seven recurring compositional strategies emerge. Each represents a distinct approach to the cover problem: balancing identity, hierarchy, and visual impact within a single page. Understanding these typologies helps you make deliberate choices rather than defaulting to familiar patterns.

Type 01: Pure Minimal / Text-Only

Maximum whitespace as the primary compositional element. Typography is the sole visual content. Text occupies less than 8% of the page area, and the surrounding void is not residual space. It is the dominant design element. The emptiness signals restraint and editorial confidence.

Cover: Nick McIntosh

The text cluster is almost never centered. It gravitates toward the lower-right quadrant, creating a diagonal tension against the upper-left void. This asymmetry activates the otherwise static whitespace. Title, subtitle, and metadata are grouped as a single compact unit, with internal hierarchy achieved through weight (bold to regular to light) and progressive scale reduction.

Type 02: Dark Ground / Inverse

Figure-ground inversion through dark surface and light typography. In conventional covers, the white page acts as neutral ground. Here, the dark surface becomes an active presence — a material void from which typographic elements emerge as luminous figures. The page shifts from carrier to protagonist.

Cover: Alessandro Sutto, IUAV Venezia

Light type on dark ground produces a perceptual glow — letterforms become radiant figures, not just information. This shifts the role of text from semantic content to graphic object. The title word is frequently broken apart, rescaled, or interleaved with geometric primitives (circles, rectangles). Individual letters are treated as autonomous compositional elements rather than components of readable text. Dark covers almost always introduce visible surface texture — paper grain, concrete, noise. The tactile quality prevents the dark field from reading as a flat digital screen and grounds it in physicality.

Type 03: Hero Image / Central Focal

Three-band vertical structure with a single dominant image as compositional anchor. A single architectural image — rendering, photograph, or isometric drawing — occupies 55-65% of the total page area. Centered or slightly offset vertically, this image must be strong enough to represent the entire body of work. It IS the portfolio's visual identity.

Cover: Melisa Alaminos Fenoglio

The composition divides into three horizontal zones: Header (title/subtitle, approximately 17%), Image (dominant focal, approximately 58%), and Footer (name/date, approximately 25%). These bands rarely overlap. Text remains small and peripheral. It anchors corners without competing with the image. Metadata elements (year, volume number, institution) occupy the corners opposite the title, establishing a rectangular framework that stabilizes the overall composition. Corner placement (top-left title vs. top-right year) creates secondary diagonal tension.

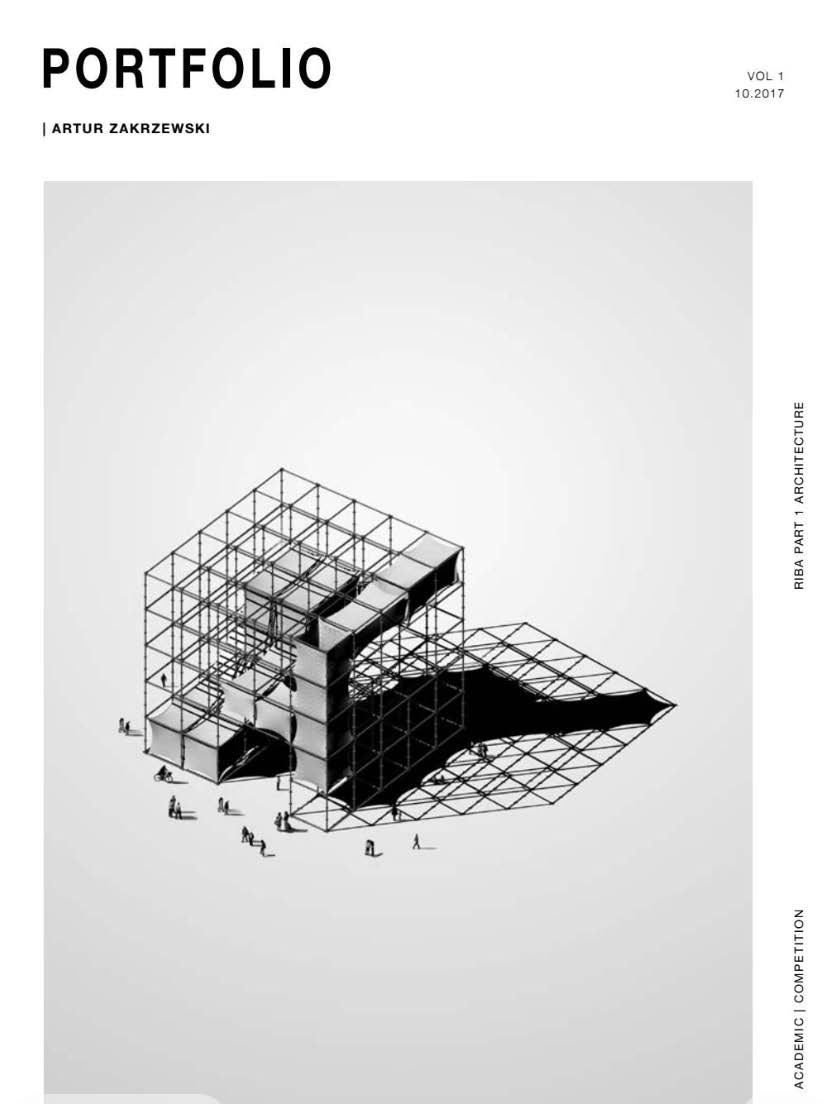

Type 04: Bleed Image + Type Band

Two-zone composition: an edge-bleeding image paired with a distinct typographic band. The image touches three page edges (top, left, right) — implying continuation beyond the frame. This creates immersive scale and suggests the architectural content exceeds the page boundary.

Cover: Steven Rubio

The sharp boundary between image zone and type zone is the most critical compositional element. This edge generates the primary visual tension. The abrupt transition, not a gradient or fade, creates structural clarity and graphic force. The type zone contains bold, large-scale title text that counterweights the visual mass of the image. Corner elements (issue numbers, dates) anchor the band's extremities, establishing a micro-grid. Variant orientations include horizontal split (top/bottom, most common), vertical split (left image / right type band), diagonal split with an angled boundary, and image bleeding from one side only.

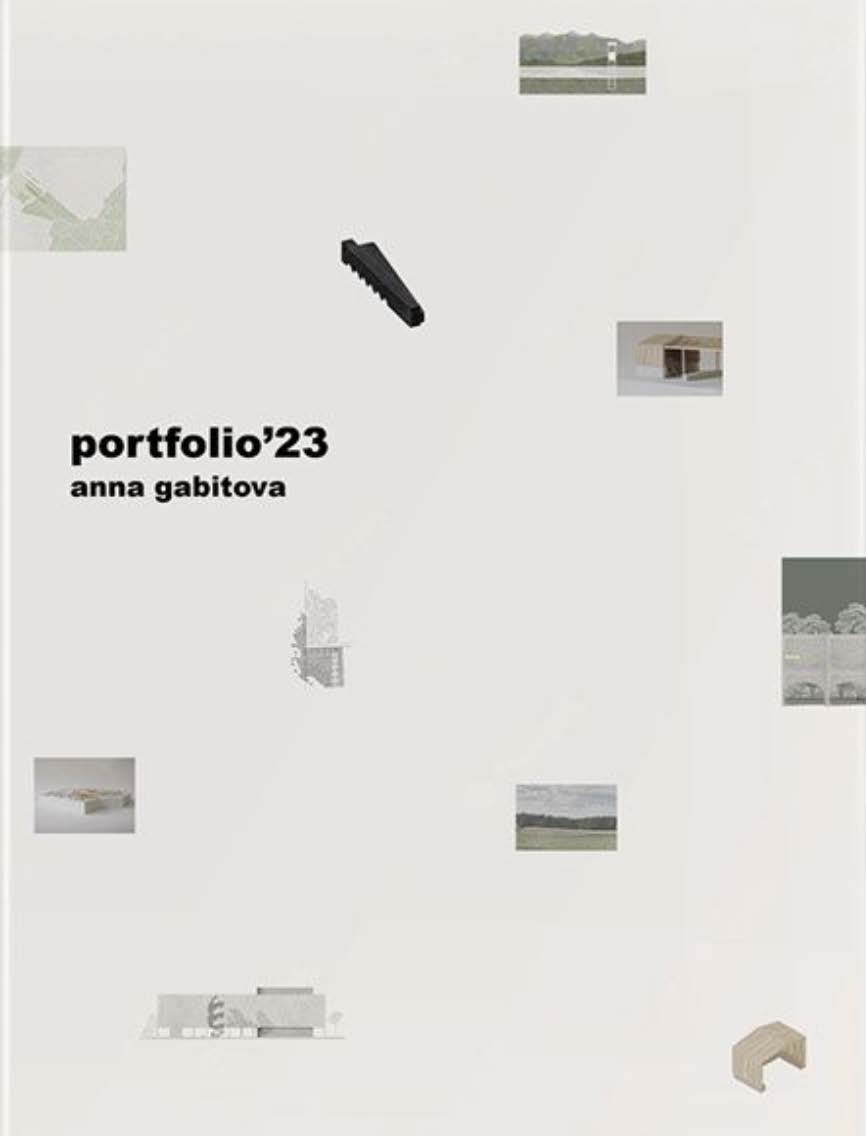

Type 05: Scattered Collage / Thumbnail Array

Distributed multi-image composition with irregular spacing and variable scale. Thumbnails are deliberately different sizes — ranging from very small to medium. This scale variation produces visual rhythm and establishes an implicit hierarchy among projects without explicit labeling or numbering.

Cover: Anna Gabitova

The gaps between thumbnails vary. This is NOT a rigid grid arrangement. The composition should feel curated, like objects arranged on a studio table. Proximity implies relationship; distance implies categorization. Thumbnails are distributed to the edges of the page, not clustered in the center. This activates the entire field. No single focal point exists; the eye wanders across the full composition. The title is positioned among the thumbnails as one object among many, not separated into its own band or zone. The title participates in the collage rather than governing it from a distinct position.

Type 06: Grid / Pattern System

Repeating geometric motif as visual identity. Systematic logic replaces imagery. A single minimal unit — cross, dot, plus mark, or tick — is repeated uniformly across the field. The individual unit is intentionally inconspicuous; the emergent field effect is what registers. Module choice often references architectural drafting conventions.

Student portfolio cover example

Horizontal and vertical spacing between units is consistent and uniform. The strict regularity IS the design. It signals systematic thinking, precision, and methodological rigor. Order over individual expression. No imagery is needed. The repeating system replaces the architectural image as the cover's visual identity. This approach is strongly associated with landscape architecture, urban design, and computational design portfolios. Letter-spacing in the title is calibrated to match the grid interval, so the text reads as part of the pattern system, not as an element placed on top of it. Typography and pattern share the same generative logic.

Type 07: Abstract Line / Geometric Composition

Freeform curves, intersecting lines, and geometric primitives as compositional elements. A single large sweeping arc spans the full page, establishing the dominant directional energy. The curve is the heaviest stroke weight. It functions as the compositional armature around which all other elements are organized.

Cover: Diego Luna, Woodbury School of Architecture

A straight line or second curve intersects the primary arc, creating a dialogue between curve and line. The tension between these elements generates compositional dynamism. Where geometric elements cross becomes the natural visual anchor. Often marked with a dot or annotated with dates/numbers. This intersection point grounds the otherwise abstract composition and gives the eye a resting point. The title sits in the negative space between geometric elements — a natural clearing where text can breathe. The geometry defines where text belongs; placement feels inevitable, not arbitrary. Stroke weight hierarchy (primary heaviest, secondary medium, tertiary ghost) creates depth without color.

Choosing Your Cover Strategy

Your cover typology should grow out of your work, not be selected from a menu. Consider what your strongest projects emphasize: if your work is process-driven and conceptual, a minimal or abstract line approach may be natural. If your strongest asset is a single powerful rendering, the hero image or bleed approach lets that image carry the identity. If you have a diverse body of work across scales and typologies, a scattered collage previews the range. Grid and pattern systems suit methodical, research-oriented portfolios — particularly in landscape architecture, urban design, and computational work.

The Table of Contents as Design Decision

The table of contents is the first design decision the reader encounters after the cover. It reveals how the designer thinks about sequence, hierarchy, and invitation. A well-designed TOC does more than list page numbers: it establishes the portfolio's organizational logic, previews its visual language, and sets expectations for the reading experience that follows.

6 TOC Typologies

Through analysis of architecture and design portfolio tables of contents, six recurring compositional strategies emerge. Each represents a distinct approach to the navigation problem: balancing information density, visual engagement, and structural clarity within one or two pages. Understanding these typologies helps you choose a TOC strategy that reinforces your portfolio's identity rather than defaulting to a generic numbered list.

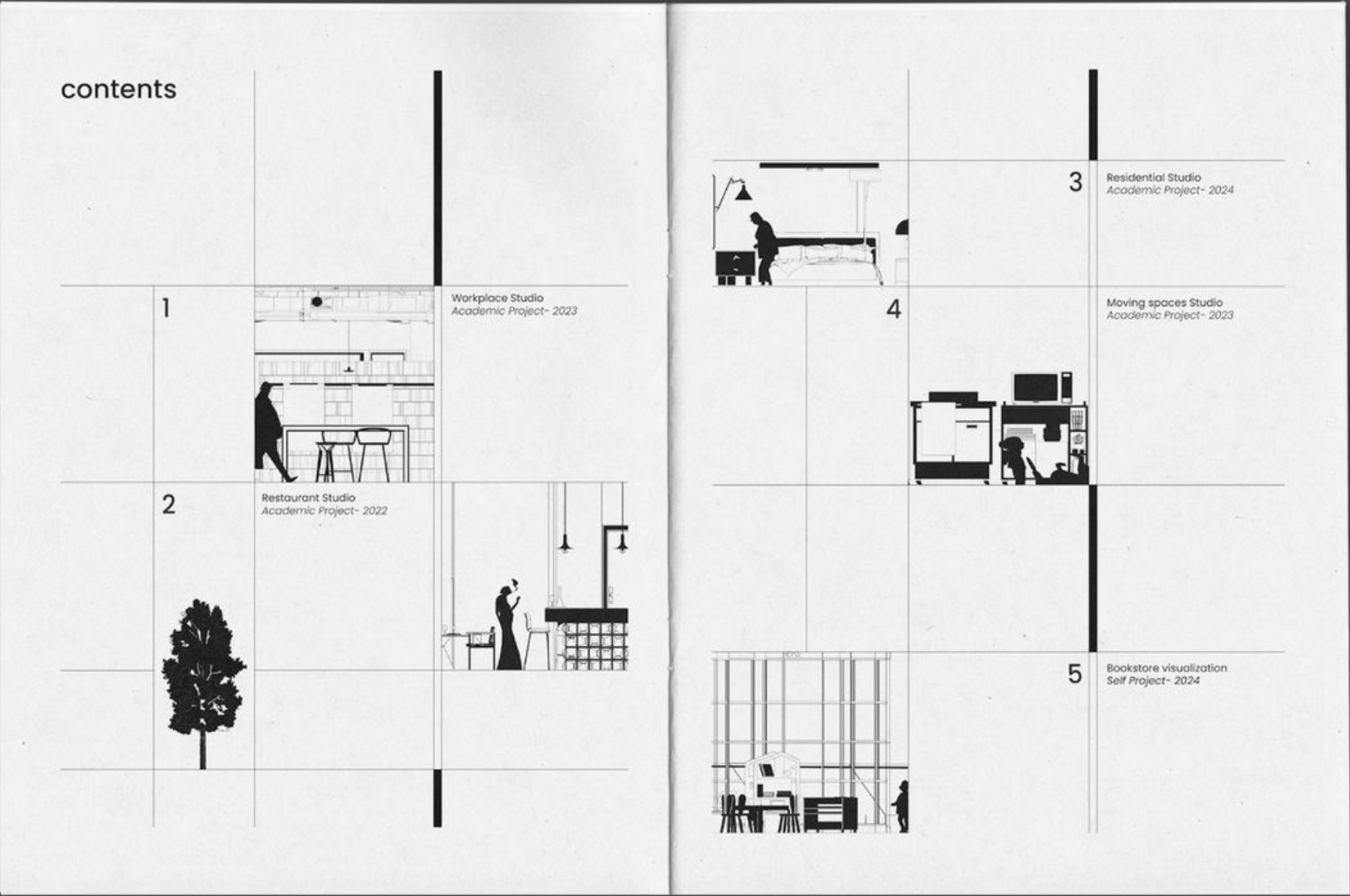

TOC Type 01: Illustrated Section Grid

Architectural vignettes organized in a modular grid separated by bold vertical dividers — transforms the TOC into a visual map of the portfolio's contents. The two-page spread is divided into equal vertical columns by thick black rules, with each column containing a B&W architectural silhouette illustration at top and project metadata stacked below.

Two-page spread with vignette columns and project metadata

Oversized section numbers anchor each column; project title, institution, and page numbers follow in descending weight. The illustration dominates the visual hierarchy. Section-cut vignettes function as a preview device — the reader navigates by recognizing building silhouettes before reading text.

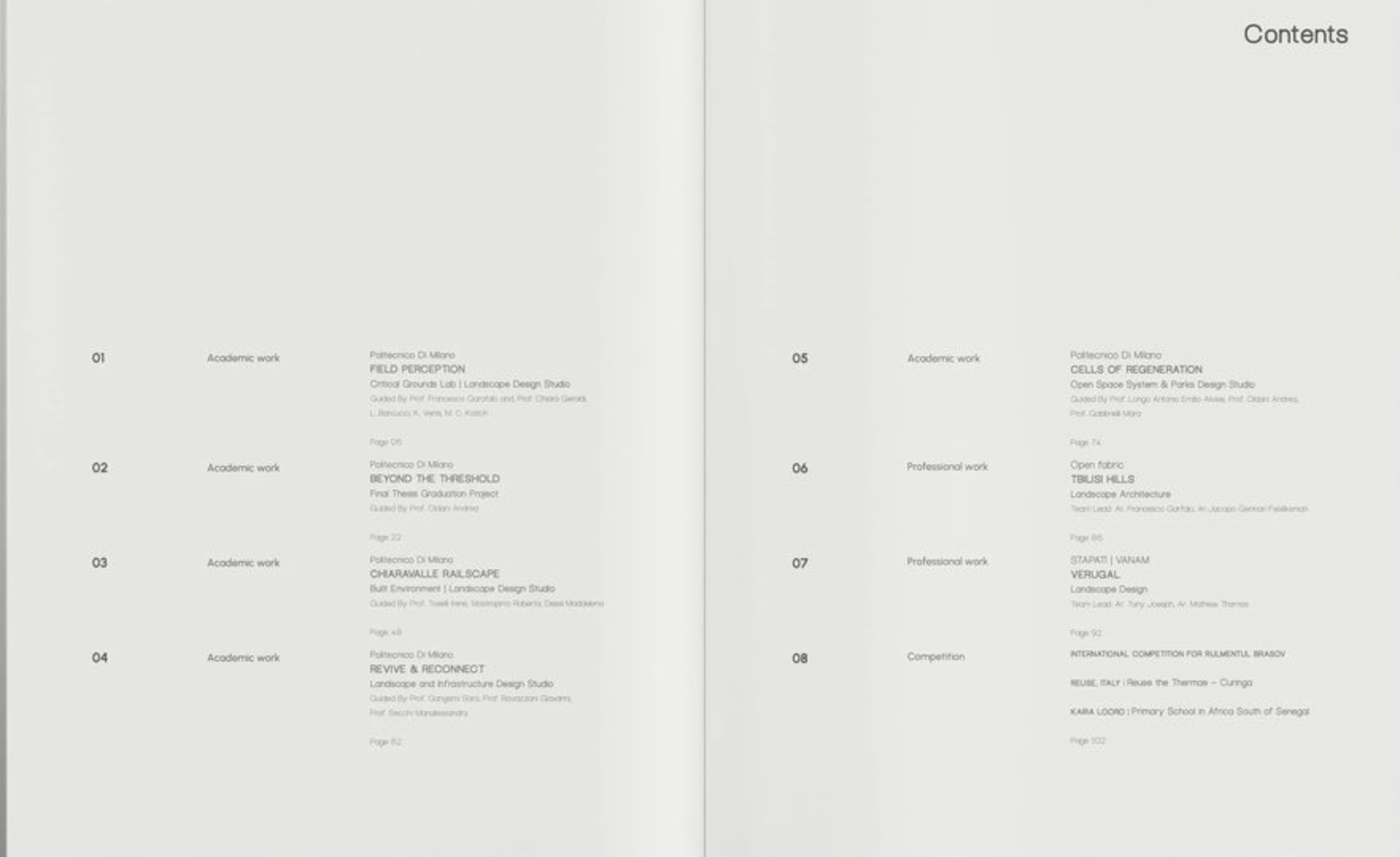

TOC Type 02: Multi-Column Text Index

A purely typographic, information-dense table of contents modeled on editorial indexes — prioritizes metadata hierarchy over imagery. Three-column layout per page with entries by numbered sequence. Each entry cascades through category, institution, bold project title, description, collaborators, and page number.

Three-column typographic layout with cascading metadata hierarchy

Hierarchy relies entirely on typographic weight and size — bold titles, regular descriptions, light credits. No decorative elements. Density signals thoroughness and editorial rigor. The absence of images forces the reader to discover projects through written descriptions.

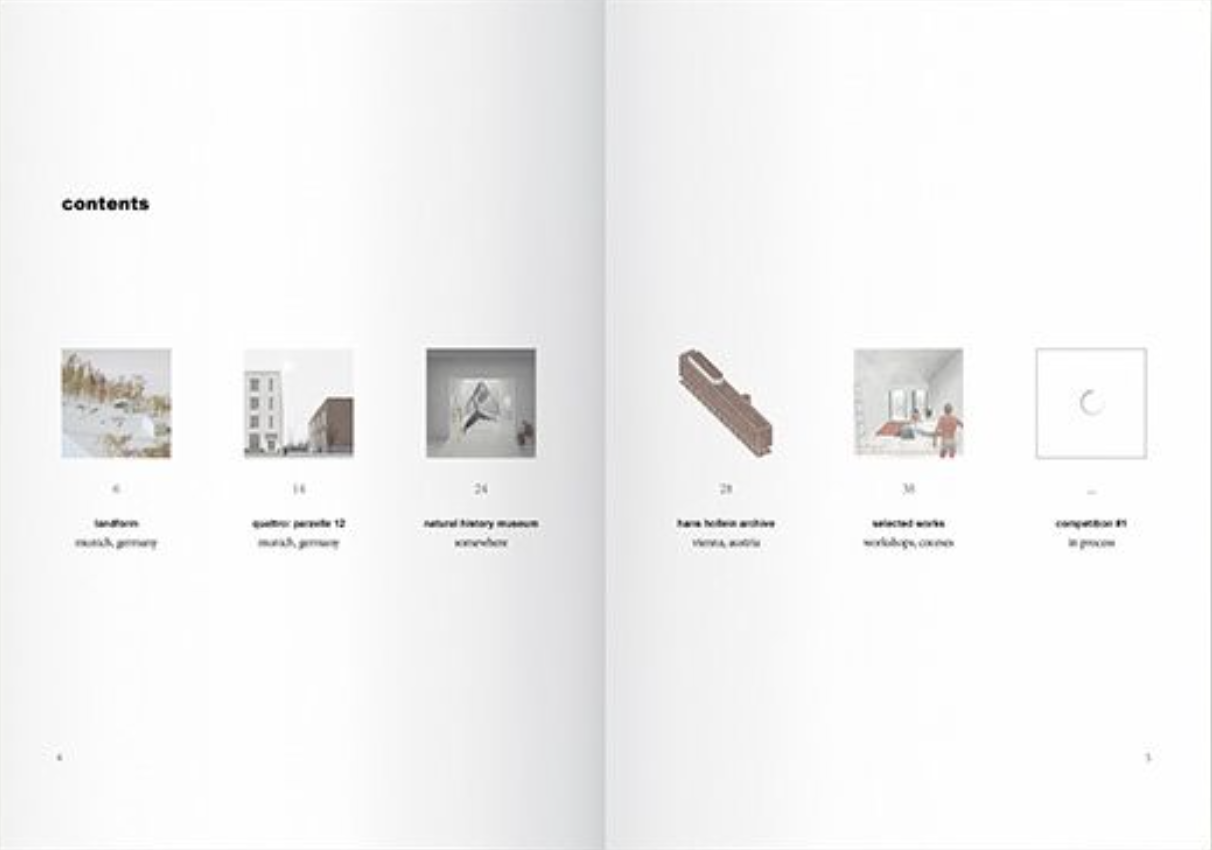

TOC Type 03: Thumbnail Gallery Row

A single horizontal row of equally-sized project thumbnails — maximizes whitespace and treats the TOC as a curated gallery strip. Page numbers and bold project titles sit directly beneath each thumbnail. Images are the primary entry point, with text kept minimal — just project name and location.

Horizontal row of equally-sized project thumbnails with minimal text

Extreme whitespace above and below the single row creates a sense of curation and deliberateness. Each thumbnail acts as a visual bookmark, forcing the viewer to engage visually before reading.

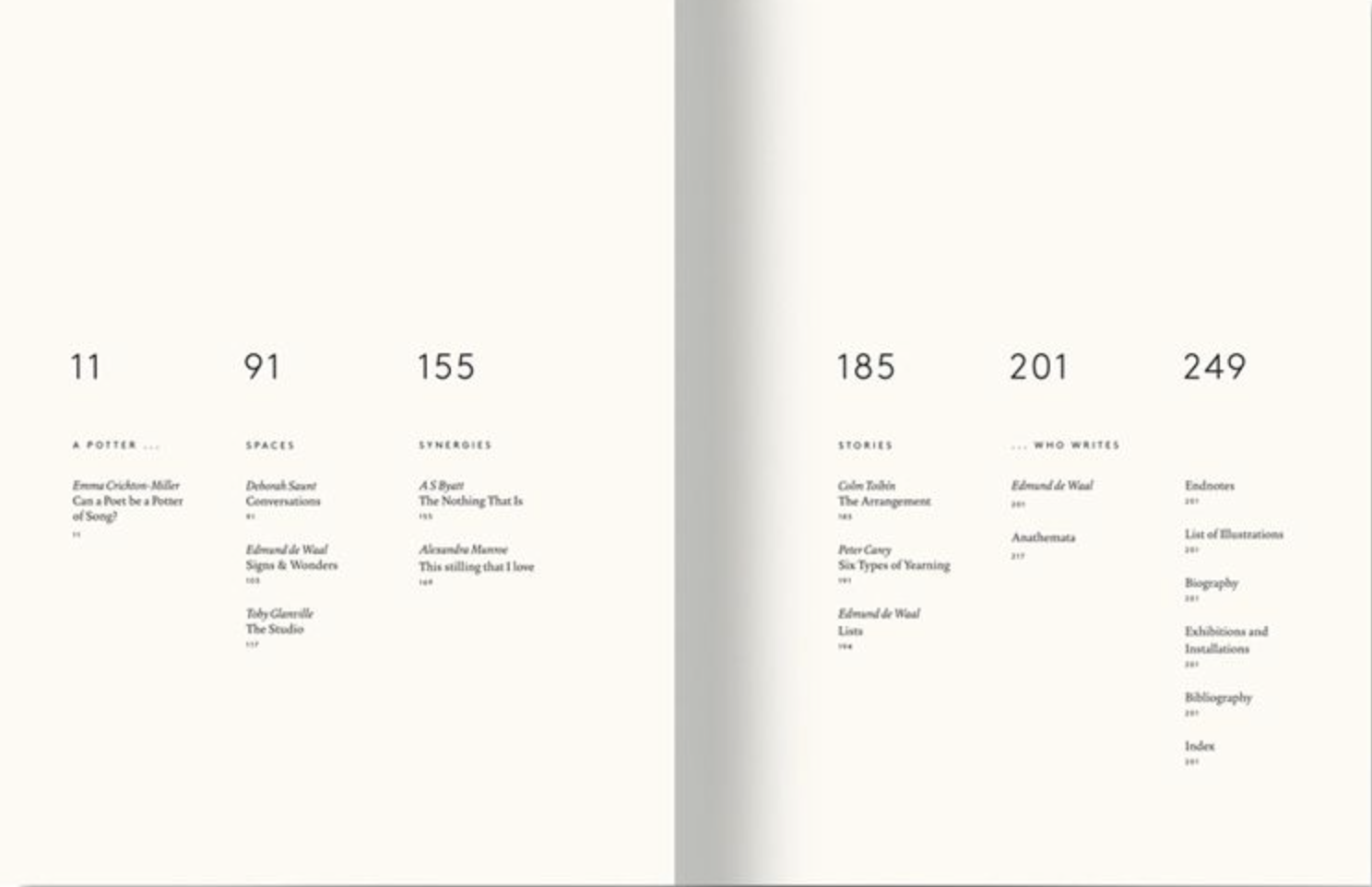

TOC Type 04: Literary Chapter Index

Oversized serif page numbers and letter-spaced chapter headings — a book-design approach that frames the portfolio as a published monograph. Large serif page numbers (11, 91, 155...) sit at top of each entry, followed by letter-spaced section headings in caps, then italic author names and essay titles below.

Oversized serif numerals with letterspaced chapter headings

The oversized numeral is the primary anchor — it acts as both navigation aid and compositional element. Section titles use letterspacing as a weight alternative to bold. Serif type and italics signal intellectual seriousness and curatorial intent. Borrows from traditional book design and literary publishing.

TOC Type 05: Bold Number Column Cards

Vertical columns with oversized colored entry numbers, thumbnail images, and structured metadata — a magazine-editorial card system. Vertical columns are divided by thin rules. Each column is a self-contained card with an oversized colored number (01–05), bold name, subtitle/role, thumbnail image, and date.

Vertical card columns with oversized red numbers and thumbnails

The large colored number dominates each card, followed by the bold title, then metadata in lighter weights. The thumbnail adds visual variety within a strict grid. Column structure creates rhythm while accent color numbers add energy and wayfinding. Each entry functions as a mini-profile or editorial card.

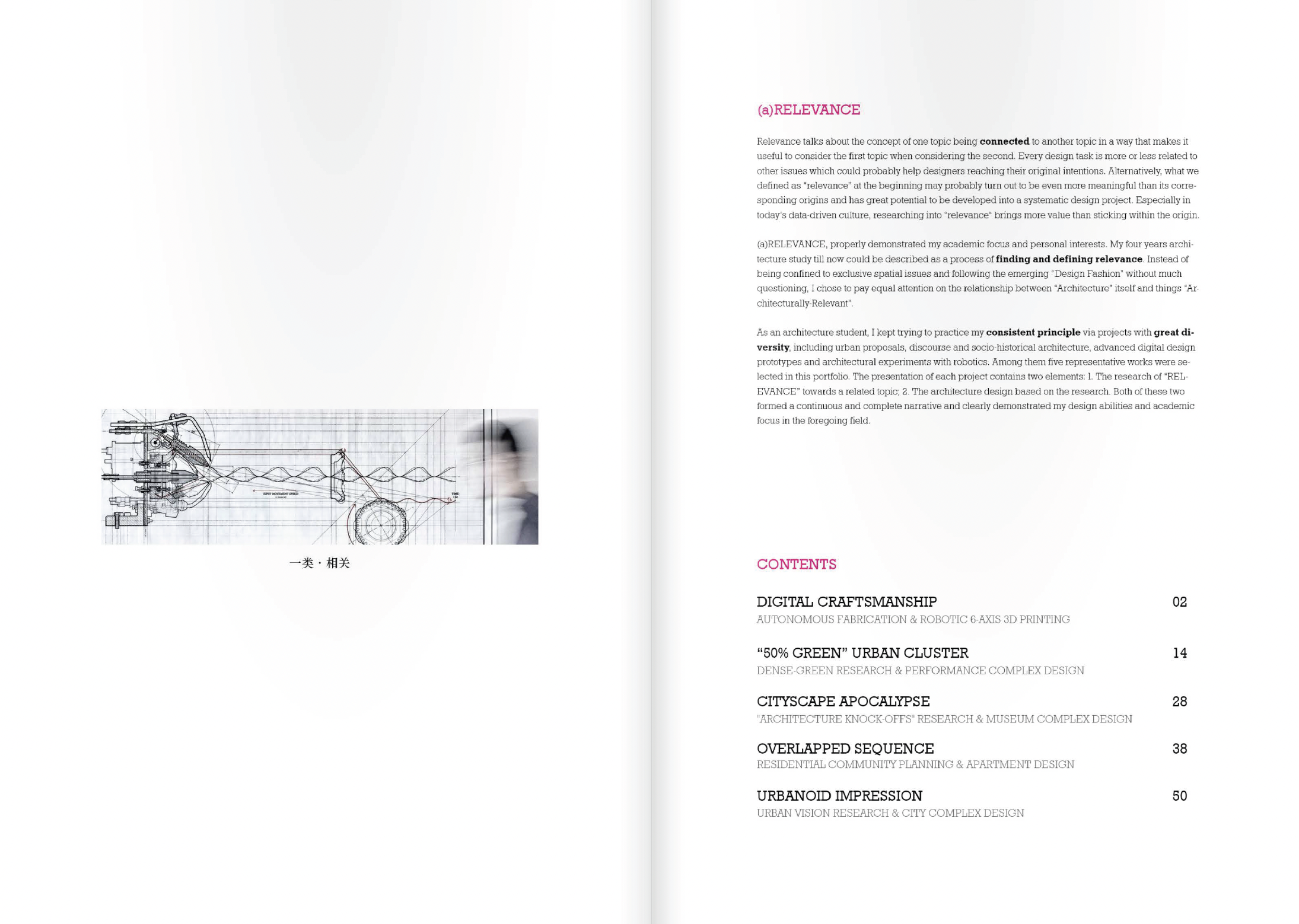

TOC Type 06: Narrative + List Hybrid

A two-page spread pairing a thematic essay or statement page with a traditional contents list — integrates storytelling into navigation. The left page has a thematic essay with an architectural drawing. The right page is a contents list with bold titles, subtitles, and right-aligned page numbers. An accent header anchors the list.

Essay spread with drawing (left) paired with structured contents list (right)

The essay page establishes conceptual framing (why), while the list page provides navigation (where). The accent header bridges the two halves. Merges the TOC with an introduction, giving the reader context before they navigate. The drawing acts as both illustration and conceptual anchor.

Choosing Your TOC Strategy

Your table of contents should reinforce the same design logic as your cover and spreads. If your cover uses a minimal, text-driven approach, a multi-column text index or literary chapter index will feel cohesive. If your cover leads with strong imagery, the illustrated section grid or thumbnail gallery row extends that visual identity into the navigation. Consider how many projects you have, how much metadata each needs, and whether your portfolio leans editorial or expressive. The TOC is not just a directory — it is the first interior page that demonstrates your ability to organize information with clarity and intention.

Technical specifications matter. A beautifully designed portfolio produced at low resolution will feel unprofessional when printed or viewed on a quality screen. Production standards establish the difference between an amateur portfolio and a professional one.

Digital vs. Print Standards

PDF Production and Ghostscript Optimization

When exporting your portfolio to PDF from InDesign or similar software, use these Ghostscript presets to balance file size and quality:

• /screen: 72 DPI, smallest file size (2–5 MB for 30-page portfolio). For teaser emails or quick digital sharing.
• /ebook: 150 DPI, balanced file size and readability (5–10 MB). Acceptable for digital viewing on tablets and laptops.
• /printer: 300 DPI, maximum quality (10–20 MB+). For standard desktop printing or professional printing services.

File Organization and Version Control

Maintain separate master files for different contexts:

• Portfolio_Master_2026.indd: Your primary working file at full resolution (300 DPI)
• Portfolio_Print_2026.pdf: Optimized for printing (300 DPI, CMYK color)
• Portfolio_Digital_2026.pdf: Optimized for screens and email (150 DPI, RGB color, ~10 MB)
• Portfolio_Website_2026.pdf: Compressed for web (72 DPI, RGB, 2–5 MB)

Printing Considerations

If printing your portfolio professionally, work with a printer who understands design specifications. Provide a print-ready PDF with all fonts embedded, images at 300 DPI, and color profiles clearly specified. Request a proof before full production. Paper selection affects the final appearance: matte paper reduces glare and feels more refined; coated paper enhances color saturation and image detail.

Photography of your work, whether architectural models, finished projects, or process documentation, requires intentional technical approach. Poor photography can make strong work appear weak; excellent photography can strengthen modest work to compelling visual impact.

Architectural Photography Principles

Vertical and Horizontal Lines: Architectural photography must maintain vertical and horizontal lines to avoid the distortion that results from tilting a camera. Use tilt-shift lenses or the Transform tool in Lightroom/Photoshop to correct perspective distortion after shooting.

Exposure: Bracket your exposures (shoot the same scene at multiple exposures) to ensure proper detail in both highlights and shadows. In post-processing, you can blend exposures or use HDR techniques to capture the full tonal range of the space.

Lighting: Natural light is preferred. Shoot on overcast days to avoid harsh shadows, or shoot during golden hour (first light after sunrise, last light before sunset) when warm directional light flatters architectural forms. For interior spaces, supplement with controlled artificial light to balance ambient and artificial sources.

Tripod Mandatory: Always use a tripod. Even slight movement creates softness. Use a remote shutter release or the camera's self-timer to avoid vibration.

Aperture Settings: Use apertures f/8 to f/16 to maximize depth of field, ensuring that foreground and background are equally sharp. Wider apertures (f/4–f/5.6) work for detail shots where selective focus is desired.

ISO: Maintain ISO 100–200 for maximum image quality. Higher ISOs introduce noise that becomes visible when images are printed or enlarged.

Model Photography Techniques

Lighting Setup: Professional model photography requires two light sources: direct light (simulating sun, creating shadows and defining form) and indirect fill light (general illumination reducing shadow density). Position the key light at 45 degrees to the model, roughly eye level, with fill light from the opposite side.

Background: Continuous black or white cloth (cyclorama) creates a clean, neutral backdrop allowing the model to occupy visual focus. Avoid patterned or colored backgrounds that distract from the work.

Camera Angles: Eye-level perspectives provide realistic views showing the model as a person would experience it. High-angle views show layout and site relationships. Multiple angles document the model's three-dimensionality.

Post-Processing: Color correction and minor retouching are acceptable and expected. Excessive manipulation should be disclosed if work is for professional application.

Photography as Narrative Tool

Choose photography that reinforces your project narrative. If your narrative emphasizes material detail, photograph at close range showing texture and finish. If your narrative emphasizes spatial experience, photograph at human scale showing sightlines and proportions. Photography should be another language communicating your design ideas, not merely documentation.

In 2026, your portfolio exists in multiple contexts: printed format, PDF, website, and social media platforms. Each context requires different specifications and design approaches. AI tools have emerged as legitimate production aids for generating visualizations, renderings, and conceptual imagery when used ethically and with transparency.

Portfolio Production Software

Adobe InDesign: The industry standard for print and PDF portfolio design. Allows precise control over layouts, typography, and image placement. Pair with Photoshop for image editing and Illustrator for vector graphics.

Useful InDesign Plugins for Architects:

AI Tools for Portfolio Production in 2026

Rendair AI: Transforms hand sketches and conceptual models into photorealistic architectural visualizations. Useful for developing multiple design variations quickly or generating perspectives from preliminary sketches.

Autodesk Forma: Real-time site analysis tool providing sun path diagrams, wind analysis, shadow studies, and noise modeling. Generates professional-grade diagrams communicating environmental performance of designs.

Midjourney: Conceptual exploration and mood boarding. Generate atmospheric reference images, explore design directions, or visualize abstract concepts. Disclose use of AI generation when presenting work.

Adobe Firefly: Generative filling and texture generation within Photoshop. Useful for removing unwanted elements from photographs or generating landscape and sky backdrops for architectural photography.

Digital Platforms and Online Presence

Website Portfolio Considerations

A personal website portfolio offers maximum control over your presentation. Key considerations: fast load times (optimize images and minimize file size), mobile responsiveness (test on phones and tablets), clear navigation (simple menu structure, obvious next steps), and direct contact information (email, LinkedIn, phone).

Your website portfolio should be professionally registered (not a subdomain or social media profile URL) and should be included in email signatures and application materials. It is often the first thing potential employers research.

Before finalizing your portfolio, conduct a systematic self-audit across two levels: individual project quality and overall portfolio coherence. Use this checklist to identify areas for refinement.

Common Narrative Failures

If your portfolio feels off but you cannot pinpoint why, revisit the five common narrative failures described in Section 4: The Greatest Hits Portfolio, The Process Dump, The Beautiful Mute, The Buried Lede, and The Academic Hedge. Each has a specific fix. The checklist above will help you identify which failure pattern, if any, applies to your current draft.
